Description
Plug and play harness for ReFlex Plus™ for Supra A9X.
Included:

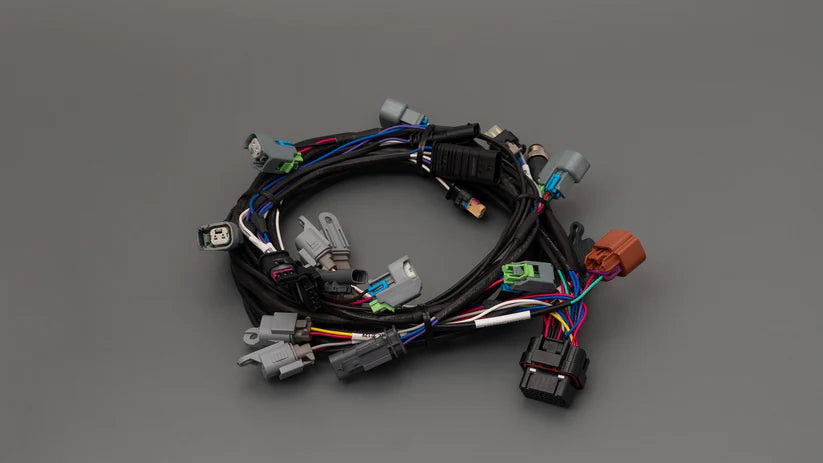

ReFlex™ plug and play harness
- This plug-and-play harness connects to all of the following: port injection, ethanol sensor, low-pressure fuel sensor, MAP, intake CAM, and crank sensor.
- The CAN + power splitter connects the harness to the Body Domain Controller in the passenger footwell behind the kick-plate.
Charge pipe extension cable
- The charge pipe extension cable connects into the charge pipe MAP sensor to read higher boost pressures for those tuning with Bootmod3 or MHD on B58 Gen 1 and Gen 2 platforms. It does not fit the S58 G8X chassis; if tuning with Bootmod3 or MHD on the G8X Chassis (S58 engine), we recommend changing the TMAP sensor to a higher pressure 4 Bar sensor rather than trying to extend to the charge pipe.
Auxiliary cable pack
- Four additional cables are included to simplify future expansions such as additional sensors, methanol, or NOS. These 8 ft. cables plug directly into the unused ReFlex™ harness auxiliary ports Aux Out 1/2/3 and Aux in 4 (PSI).
ReFlex Plus™ mounting bracket
- The mounting bracket holds the ReFlex™ safely in place in the access compartment next to the engine bay on the passenger side.
Available with ReFlex Plus™ and Motiv™ 0-10 Bar Pressure Sensor
Compatible Car Models:
2020-present Toyota Supra™ A9X
